1–10×28 ED FFP LPVO – 34mm Tube, MRAD, IPX7
- Wide 1–10× range supports close and extended distances
- ED glass and a first focal plane MRAD reticle
- 34mm tube, button controls and IPX7-rated construction
Encrypted connection and protected payment processing.
Delivery services and estimates are shown at checkout.
Eligible unused items may be requested for return within 30 days.

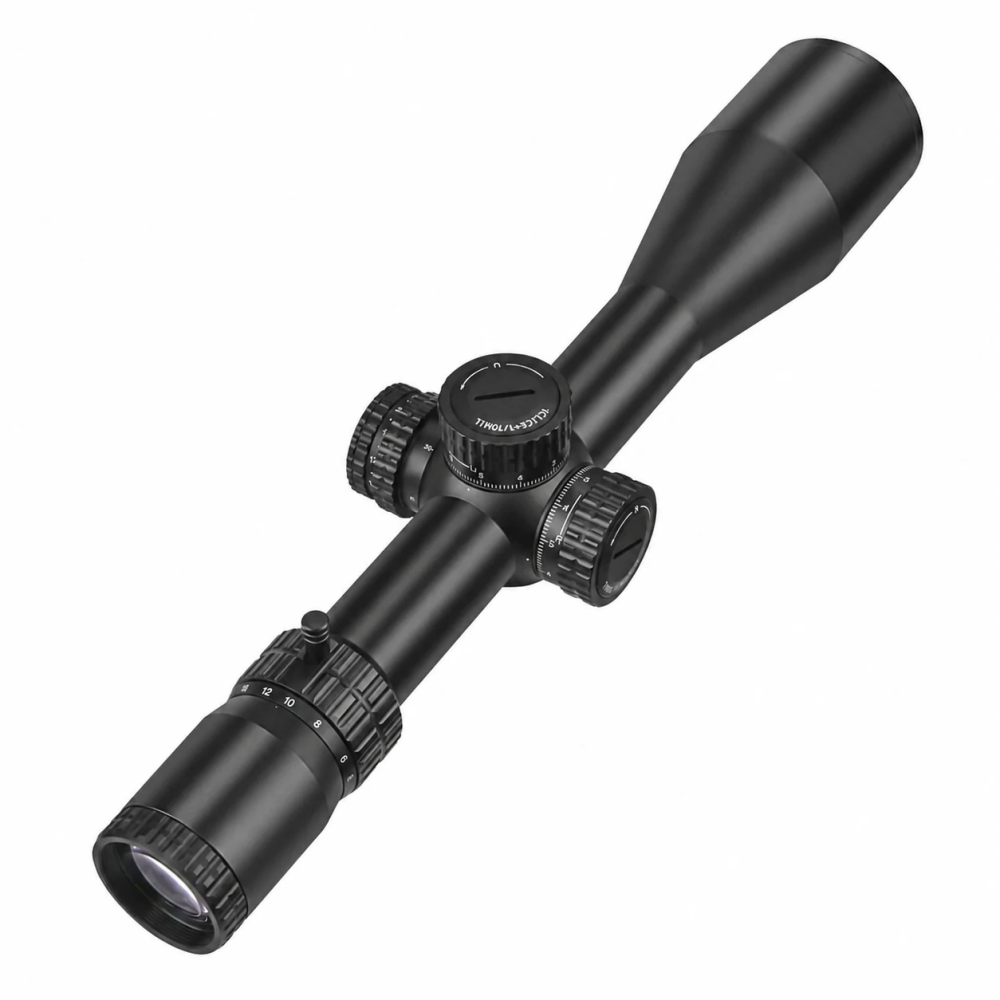

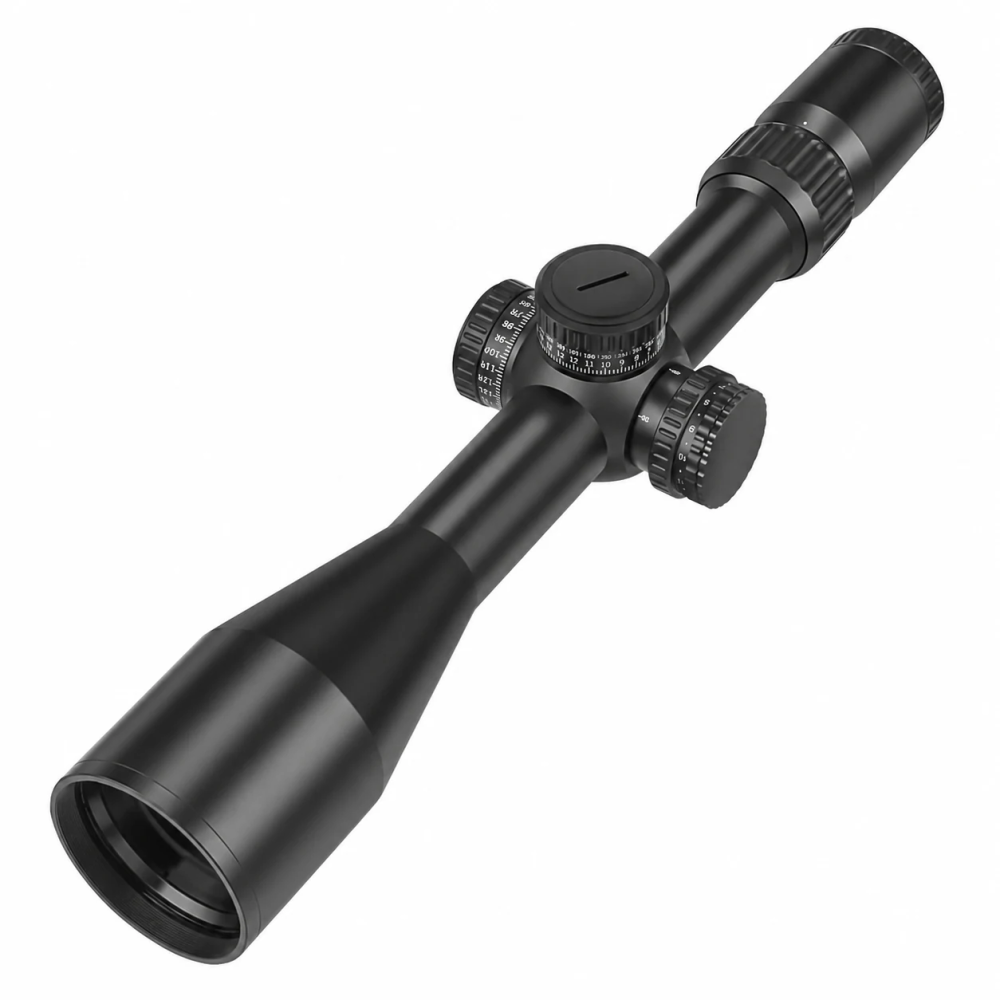

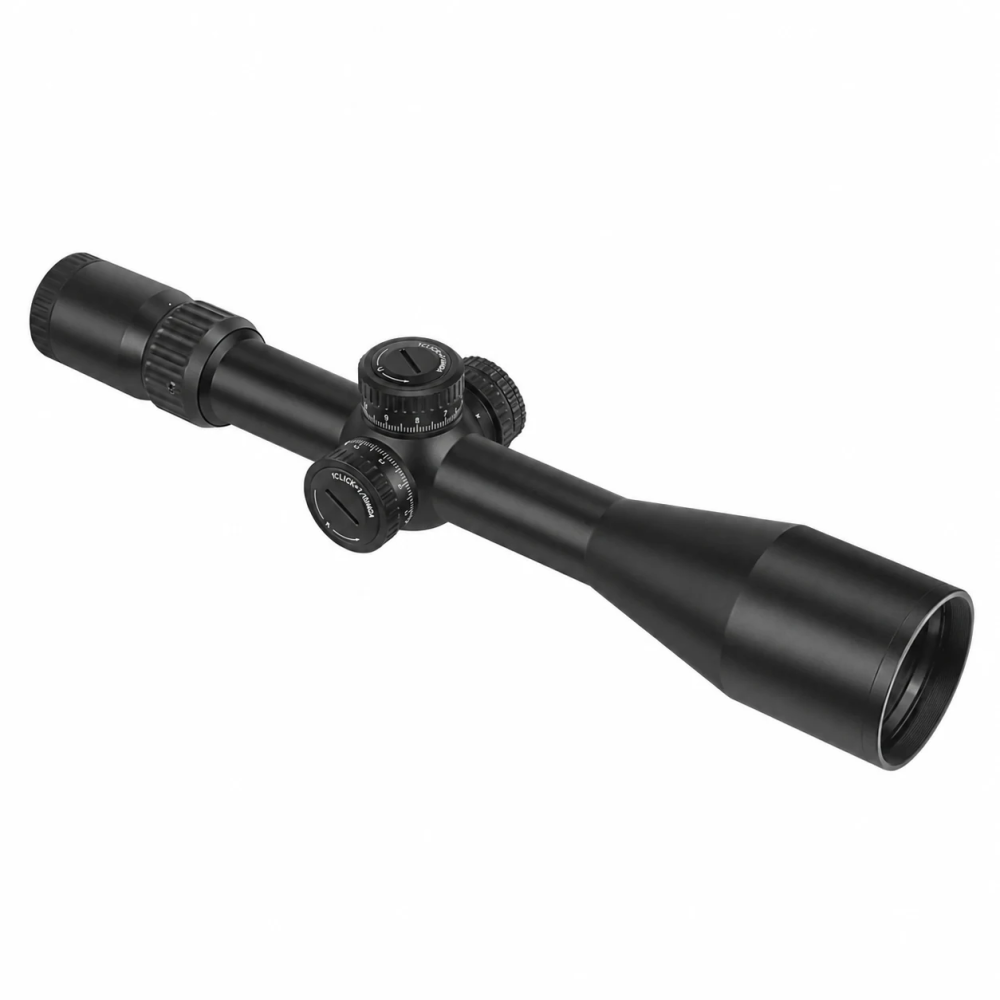

Built for clear observation and repeatable adjustment at medium and extended distances, this 5–25×56 first focal plane optic combines a large 56 mm objective, a rigid 34 mm aluminum tube and a coordinated MOA reticle and turret system. It is a practical choice for sporting, hunting and outdoor setups where detail, tracking and mounting stability matter.
| Magnification | 5–25× |
|---|---|
| Objective lens | 56 mm |
| Focal plane | First focal plane (FFP) |
| Tube diameter | 34 mm |
| Adjustment unit | MOA |
| Click value | 1/4 MOA |
| Zero stop | Yes |
| Parallax range | 15 yd–∞ |
| Parallax reference distance | 100 yd |
| Eye relief | 90–110 mm |
| Field of view | 0°50′–4°22′ |
| Lens coating | Fully multi-coated |
| Material | 6061 aluminum |
| Battery | CR2032 |
| Finish | Matte black |
| Weather protection | IPX7 (1 m for up to 30 minutes) |
This listing is for the optical sight. A compatible 34 mm mounting system is required. Mounting hardware and other accessories are not included unless they are explicitly shown and stated in the order details. Please confirm included accessories with USEEIN before ordering if your setup requires a specific item.
For a suspected manufacturing defect, contact USEEIN with your order number and clear photos or video. Claims are reviewed under the warranty and support terms applicable at the time of purchase. Damage caused by misuse, improper installation, modification, normal wear or accidental impact is not covered.
Use compatible 34 mm optic rings or a 34 mm mount. Confirm ring height, mounting length and objective clearance for your setup.

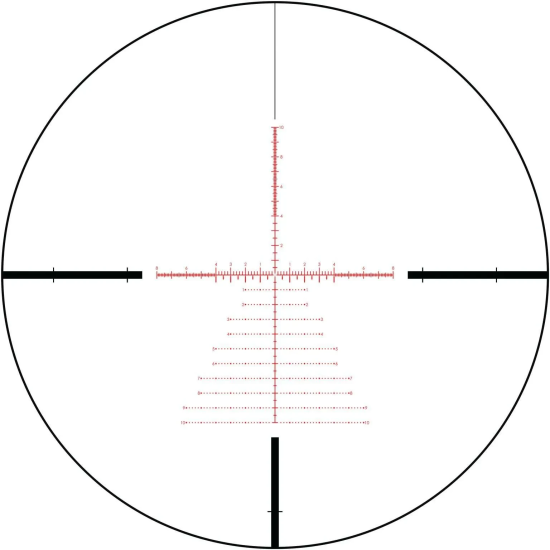

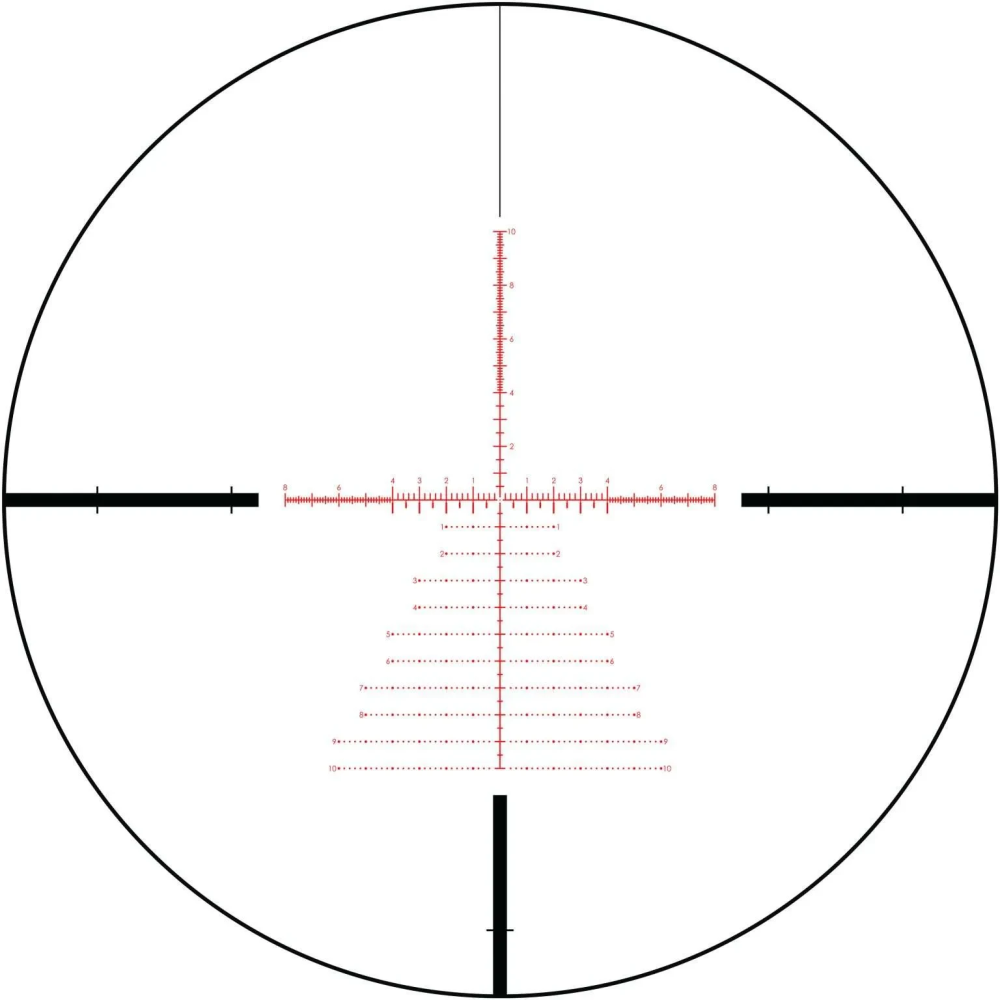

Yes. The reticle is positioned in the first focal plane, so its scale changes proportionally with magnification.
Yes. The reticle and turrets use MOA, with 1/4 MOA adjustment clicks.
The side parallax adjustment covers approximately 15 yards to infinity.
The illumination system uses one CR2032 battery.
It is rated IPX7 for temporary water immersion up to 1 metre for up to 30 minutes. Always dry and inspect the optic after exposure.
A 34 mm mount, other accessories are not included unless explicitly stated in the order details. Contact us before ordering if you need confirmation of any included accessory.
